Bihar Board Class 10th Maths Solutions Chapter 13 Surface Areas and Volumes Ex 13.2 Textbook Questions and Answers.
BSEB Bihar Board Class 10th Maths Solutions Chapter 13 Surface Areas and Volumes Ex 13.2
Question 1.

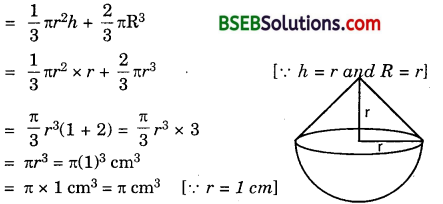

A solid is in the shape of a cone standing on a hemisphere with both their radii being equal to 1 cm and the height of the cone is equal to its radius. Find the volume of the solid in terms of n.
Solution:
Volume of the solid = Volume of the cone + Volume of the hemisphere
Question 2.
Rachel, an engineering student was asked to make a model shaped like a cylinder with two cones attached at its two ends by using thin aluminium sheet. The diameter of the model is 3 cm and its length is 12 cm. If each cone has a height of 2 cm, find the volume of air contained in the model the Rachel made. (Assume the outer and inner dimensions of the model to be nearly the same).
Solution:
Volume of the air contained in the model = Volume of the cylindrical portion of the model + Volume of its two conical ends
Question 3.
A gulab jamun, contains sugar syrup up to about 30% of its volume. Find approximately how much syrup would be found in 45 gulab jamuns, each shaped like a cylinder with two hemispherical ends with length 5 cm and diameter is 2.8 cm (see figure).
[Annual Paper (Delhi) 2008]
Solution:

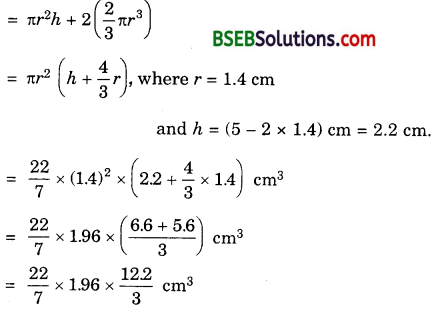

Volume of the gulab jamun = Volume of the cylindrical portion + Volume of the two hemispherical ends
Volume of 45 gulab jamuns
= 45 x \(\frac { 22 }{ 7 }\) x 1.96 x \(\frac { 12.2 }{ 3 }\) cm³
Quantity of syrup in gulab jamuns = 30% of their volume
= \(\frac { 30 }{ 100 }\) x 45 x \(\frac { 22 }{ 7 }\) x 1.96 x \(\frac { 12.2 }{ 3 }\) cm³
= \(\frac{9 \times 11 \times 1.96 \times 12.2}{7}\) cm³
= 338.184 cm³ = 338 cm³ (approx.)
Question 4.

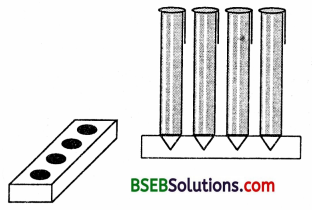

A pen stand made of wood is in the shape of a cuboid with four conical depressions to hold pens. The dimensions of the cuboid are 15 cm by 10 cm by 3.5 cm. The radius of each of the depressions is 0.5 cm and the depth is 1.4 cm. Find the volume of wood in the entire stand (see figure).
Solution:
Volume of wood in the entire stand = Volume of the cuboid – 4 x Volume of a conical depression
= lbh – 4 x \(\frac { 1 }{ 3 }\) πr²H, where l, b, h are dimensions of cuboid, r is radius of the cone and H is its depth
= 15 x 10 x 3.5 cm³ – 4 x \(\frac { 1 }{ 3 }\) x \(\frac { 22 }{ 7 }\) x 0.5 x 0.5 x 1.4 cm³
= (525 – 1.47) cm³ = 523.53 cm³.
Question 5.

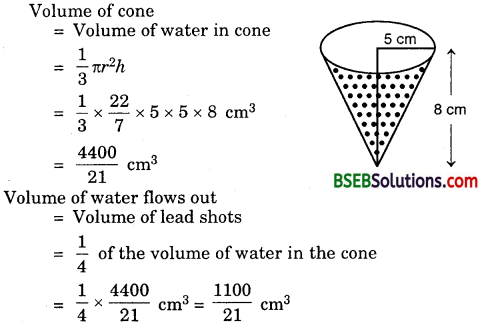

A vessel is in the form of an inverted cone. Its height is 8 cm and the radius of its top, which is open, is 5 cm. It is filled with water up to the brim. When lead shots, each of which is a sphere of radius 0.5 cm are dropped into the vessel, one-fourth of the water flows out. Find the number of lead shots dropped in the vessel.
Solution:
Height of the conical vessel h = 8 cm.
Its radius r = 5 cm.
Radius of the lead shot = 0.5 cm

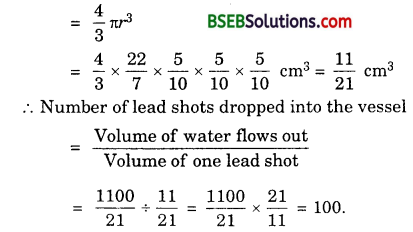

Volume of one spherical lead shot
Question 6.
A solid iron pole consists of a cylindrical height 220 cm and base diameter 24 cm, which is surmounted by another cylinder of height 60 cm and radius 8 cm. Find the mass of the pole, given that 1 cm³ of iron has approximately 8 g mass. (Use π = 3.14)
Solution:
Volume of the solid iron pole = Volume of the base cylindrical portion + Volume of the other cylindrical portion
= πr1² + πr2² h2
= (3.14 x (12)² x 220 + 3.14 x (8)² x 60) cm³
= (3.14 x 144 x 220 + 3.14 x 64 x 60) cm³
= (99475.2 + 12057.6) cm³
= 111532.8 cm³
Hence, the mass of the pole
= (111532.8 x 8) grams
= \(\left(\frac{111532.8 \times 8}{1000}\right)\) kg
= 892.26 kg.
Question 7.

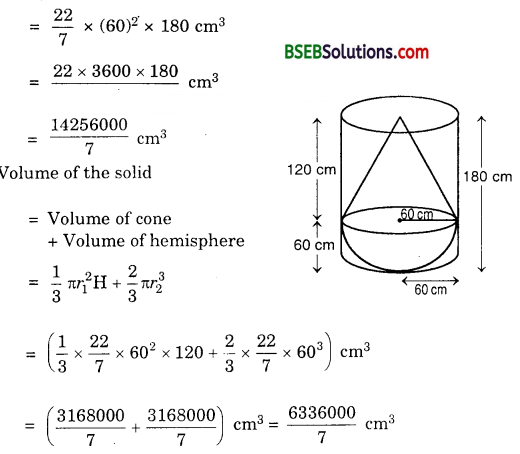

A solid consisting of a right circular cone of height 120 cm and radius 60 cm standing on a hemisphere of radius 60 cm is placed upright in a right circular cylinder full of water such that it touches the bottom. Find the volume of water left in the cylinder, if the radius of the cylinder is 60 cm and its height is 180 cm.
Solution:
Volume of the cylinder = πr²h

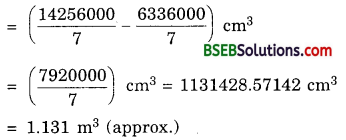

Volume of water left in the cylinder = Volume of the cylinder – Volume of the solid
Question 8.
A spherical glass vessel has a cylindrical neck 8 cm long, 2 cm in diameter; the diameter of the spherical part is 8.5 cm. By measuring the amount of water it holds, a child finds its volume to be 345 cm³. Check whether she is correct, taking the above as the inside measurements and n = 3.14.
Solution:
Volume of spherical vessel = Volume of cylindrical part + Volume of spherical part
= π(1)²(8) + \(\frac { 4 }{ 3 }\) π(4.25)³
= 3.14[8 + \(\frac { 4 }{ 3 }\) x 76.765625] cm³
= 3.14[8 + 102.353] cm³
= 3.14 x 110.353 = 346.51 cm³
∴ Here answer is incorrect. Correct answer is 346.51 cm³.
